Product Overview

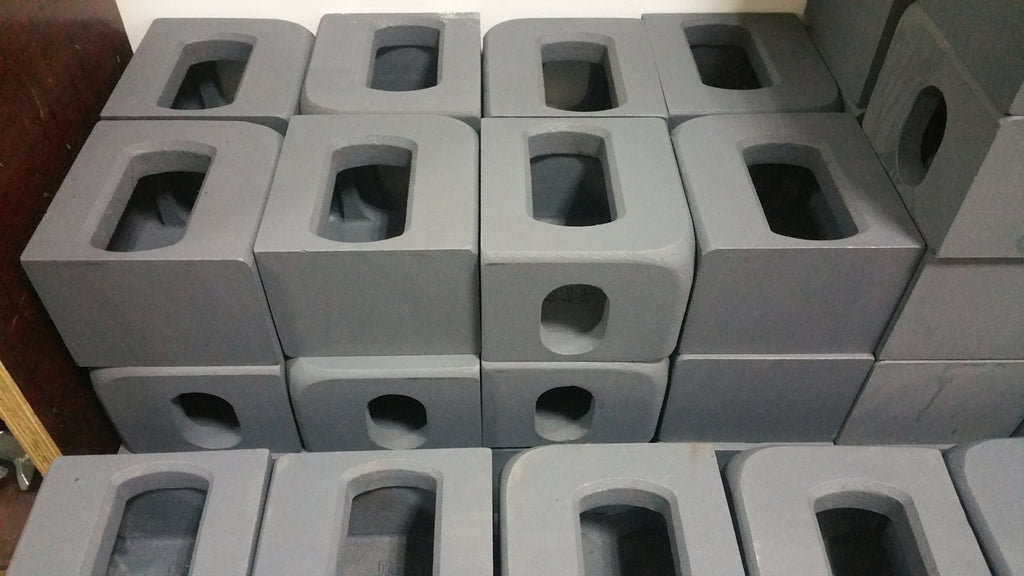

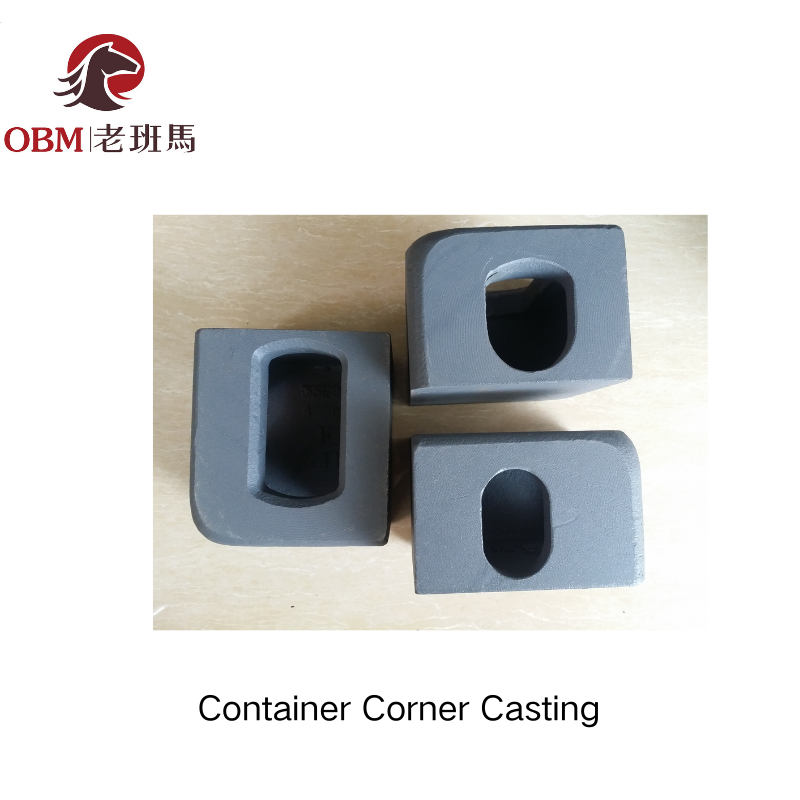

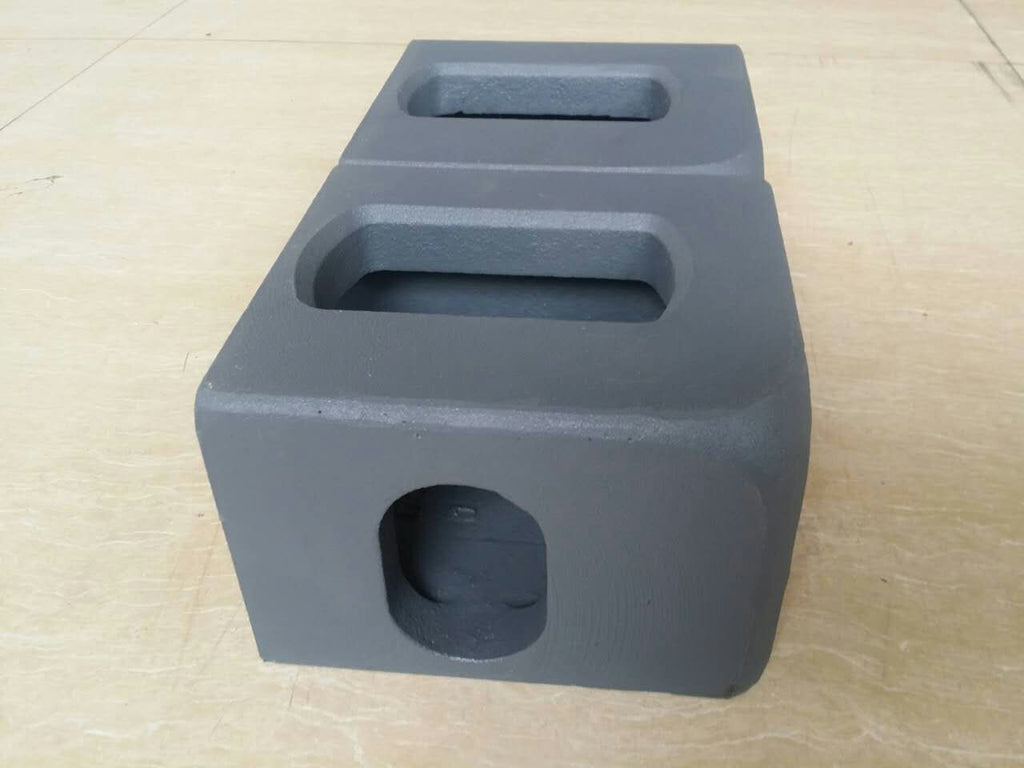

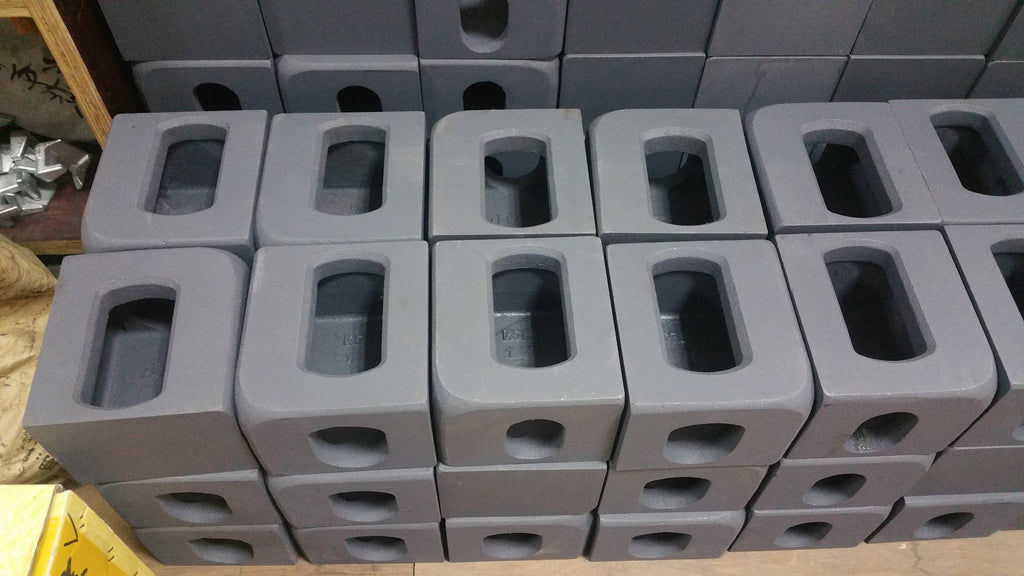

Our cast steel container corner castings are manufactured in full compliance with theISO 1161 international standard. These heavy-duty corner fittings are universally installed on the eight corners of shipping containers, modular container houses, and cargo carriage bodies.
In actual application scenarios, modular container houses may only adopt four bottom corner castings for fixed installation, while stationary container units sometimes use four top corners only. For standard and replacement purposes, most customers purchase the complete set of 8 pieces for full structural integrity.
Product Specifications
-
Standard: ISO 1161 International Standard, First-Class Quality
-
Material: Cast Steel (JIS SCW480, equivalent to ZG20SiMn alloy cast steel)
-
Dimension: 178mm × 162mm × 118mm
-
Weight: 10.8–11 KG per piece
Physical Mechanical Properties
(Test condition: -40℃, V-notch impact test)
|
Item
|
Yield Strength
|
Tensile Strength
|
Impact Energy
|
|---|---|---|---|
|
Container Corner Casting
|
≥274.6 MPa
|
≥490.3 MPa
|
≥18 N·m
|
Chemical Composition
|
Item
|
Carbon Content
|
Sulfur Content
|
Phosphorus Content
|
Carbon Equivalent
|
|---|---|---|---|---|
|
Container Corner Casting
|
≤0.23%
|
≤0.04%
|
≤0.04%
|
<0.45%
|
Design Load Capacity
Load parameters under standard stacking working conditions:
|
Working Condition
|
Load Condition
|
Design Load (KN)
|
|---|---|---|
|
Stacking
|
Top corner casting with lateral offset 25.4mm & longitudinal offset 38mm
|
848
|
|
Stacking
|
Bottom corner casting on horizontal support
|
954
|
|
Stacking
|
Bottom corner casting with lateral offset 25.4mm & longitudinal offset 38mm (5th layer container loading 6th layer)
|
848
|
Classification Society Mechanical Standard Comparison
Our corner castings fully comply with mainstream international marine classification society standards:
|
Standard
|
Yield Strength (MPa)
|
Tensile Strength (MPa)
|
Elongation (%)
|
Reduction of Area (%)
|
Charpy V-Notch Impact (Average of 3 Samples)
|
|---|---|---|---|---|---|
|
BV
|
≥230
|
450~600
|
≥22
|
≥35
|
≥18J @ -40℃
|
|
LR
|
≥220
|
430~600
|
≥25
|
≥40
|
≥27J @ -40℃
|
|
GL
|
≥220
|
430~600
|
≥25
|
≥40
|
≥27J @ -20℃
|
|
ABS
|
≥240
|
≥450
|
≥22
|
≥30
|
≥20J @ -20℃
|
|
CCS
|
≥220
|
430~600
|
≥25
|
≥40
|
≥21J @ -40℃
|
|
Max Standard Requirement
|
≥240
|
450~600
|
≥25
|
≥40
|
≥21J @ -40℃
|
Packaging & Shipping

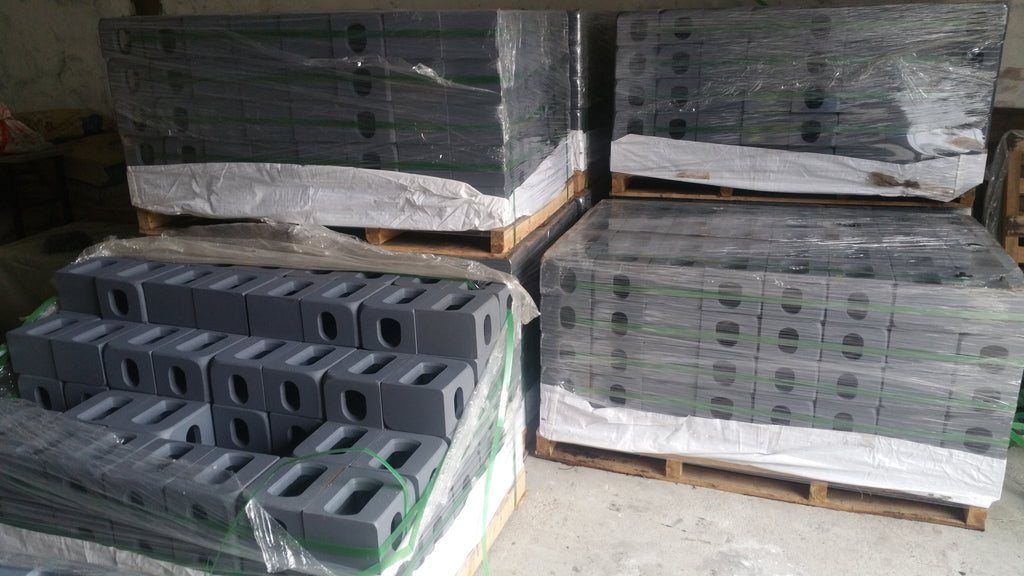

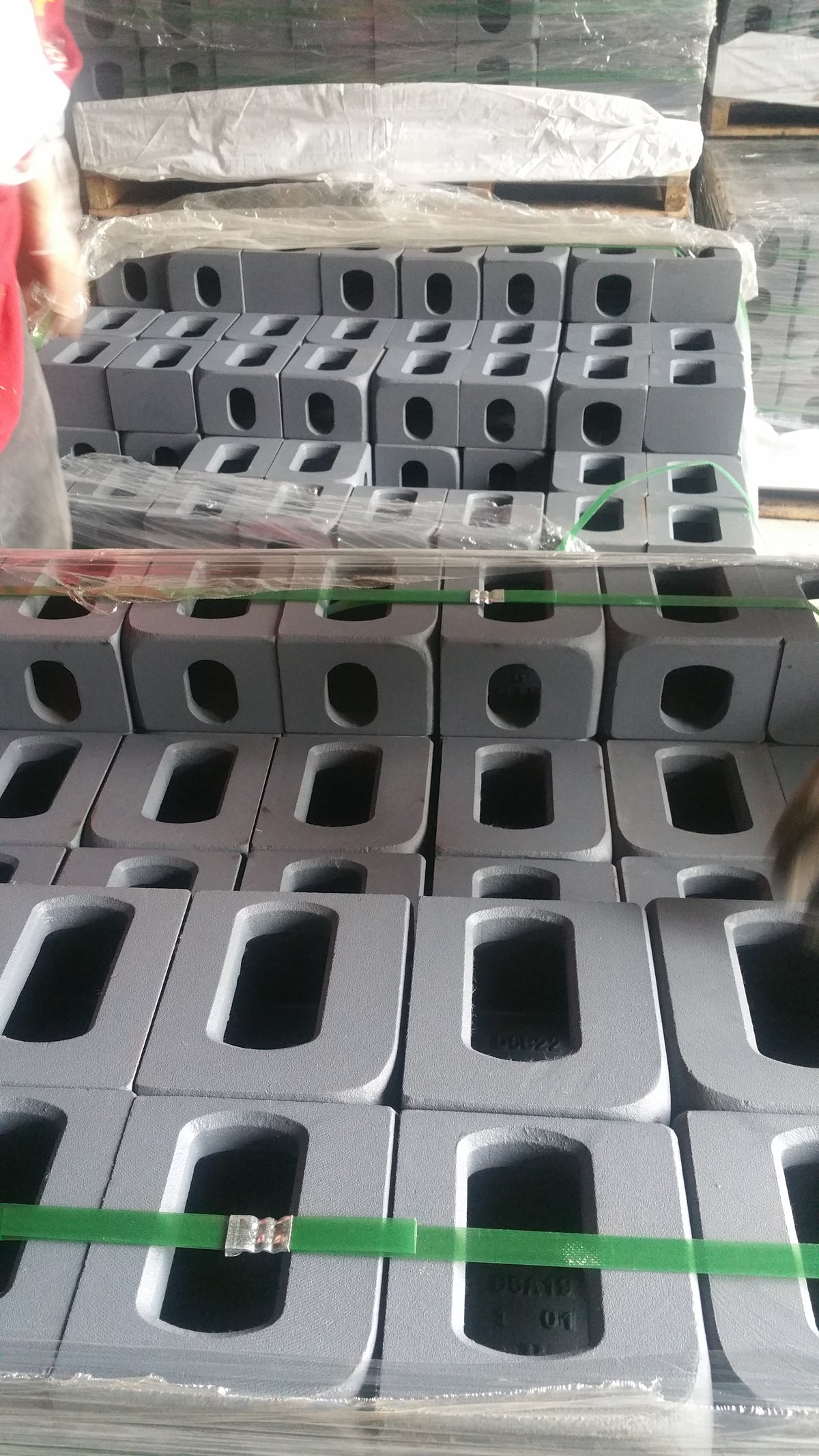

Standard pallet packaging options: 25 sets (200 pieces) per pallet or 100 pieces per pallet (different models packed separately). All pallet packages are forklift-friendly for easy loading and unloading. For small-batch orders and bulk shipments, please contact our customer service for customized safe packaging solutions.
Pricing & Order Information
The displayed price is for reference only and not the final transaction price. Due to raw material market fluctuations, product prices are subject to real-time adjustment. Please contact our team to get the latest quotation before purchase.
Installation & Application Guide
One standard container requires 8 corner castings in total:
-
Top: 4 pieces (C, D, E, F)
-
Bottom: 4 pieces (2 sets of A & B)
-
Interchangeable: C & E, D & F can be swapped freely
FAQ
1. What is the material of the container corner casting?
Adopts JIS SCW480 standard cast steel, equivalent to domestic ZG20SiMn alloy cast steel, featuring high strength, toughness and anti-fatigue performance for long-term marine and stacking use.
2. What surface coating is applied?
Finished with zinc-rich paint, providing excellent anti-rust, anti-corrosion and weather resistance for outdoor and marine environments.
3. Welding Instructions
Use CO₂ gas shielded welding with double-sided welding. The standard weld thickness is 8mm. One-time welding is recommended. For re-welding, please completely polish off the zinc-rich paint on the welding area first to ensure welding quality and firmness.
