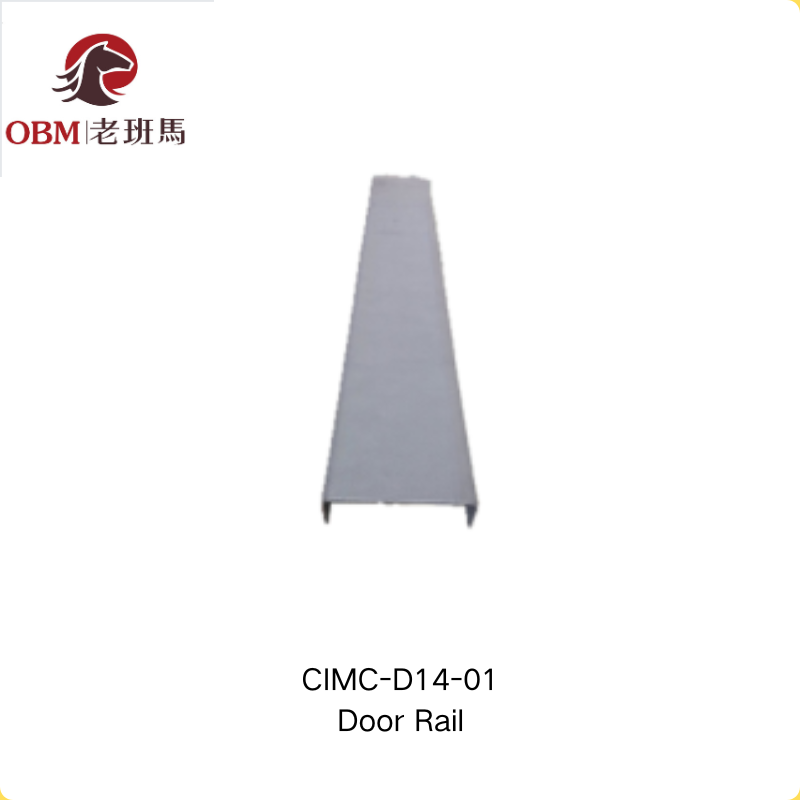

CIMC-D14-01 Corten Steel Door Header Horizontal Door Sill for Shipping Container Door Frame
4.0*50*150*50*943mm
$20.00
Sale price
$20.00
Regular price
Skip to product information
CIMC-D14-01 Corten Steel Door Header Horizontal Door Sill for Shipping Container Door Frame
$20.00
Sale price
$20.00
Regular price
Shipping Container Door Sill Horizontal Beam / Door Frame Upper & Lower Beam
Basic Specifications
- Product Name: Container Door Sill, Upper & Lower Door Frame Beam
- Model No.: CIMC-D14-01

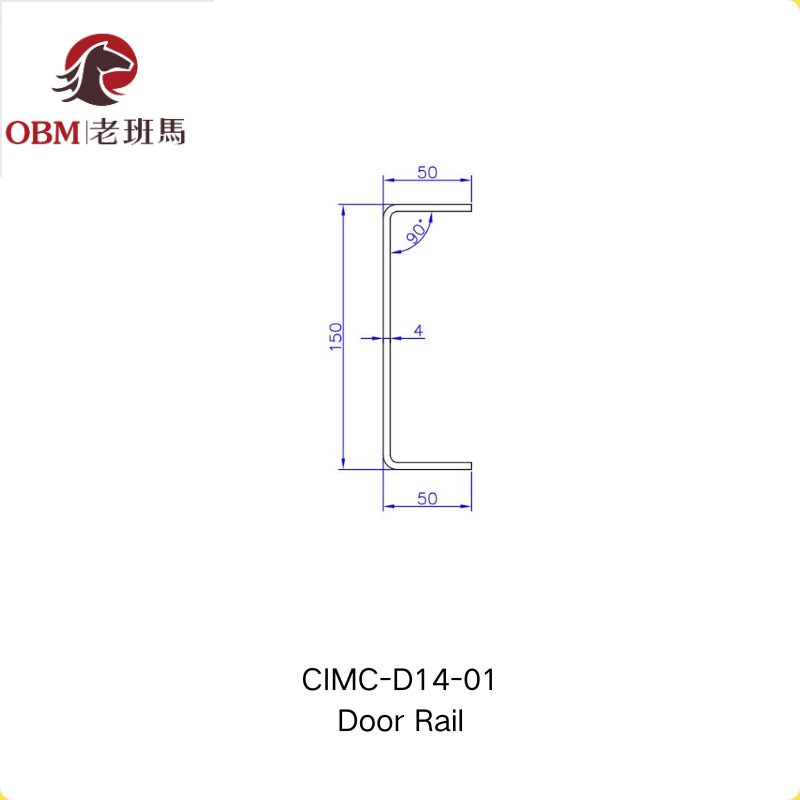

- Standard Dimension: 4.0*50*150*50*943mm; Custom sizes available for bulk orders
- Unit Weight: 6.3kg
- Material: Corten Weathering Steel
Product Overview
Also known as door header, the container door horizontal beam is a critical structural component fitted at the top of the container door. It forms a complete door frame together with the door sill, guaranteeing smooth opening and closing of container doors.
Product Features
- Structural Connection
The door header links with top corner castings as an integral part of the door end frame. It forms the full door-end framework combined with upper cross beams and corner fittings.
- Superior Load-Bearing Strength
As a primary load-bearing component, the door header features robust structural strength and stability to bear the weight of container doors and resist mechanical stress during cargo loading and unloading.
Core Functions
- Support & Stabilization
Paired with the bottom door sill, the door header forms the full door frame, providing solid support to keep doors moving smoothly without wobble during opening and closing.
- Load Bearing & Structural Integration
As part of the door-end assembly, it shares structural loads and interconnects surrounding components, maintaining the overall integrity and rigidity of the entire door end structure.
Application
Applicable to general dry cargo containers, including standard dry containers, special containers such as tank containers, refrigerated reefer containers and other ISO standard shipping containers.
